NCB® Proximal Tibia Plating System

Non-contact bridging with polyaxial screw placement

NCB® Proximal Tibia System Surgical Technique
OverviewSystem FeaturesSpecificationsBenefitsEducationAdditional Information

A locking plate system that expands a surgeons’ options in trauma surgery

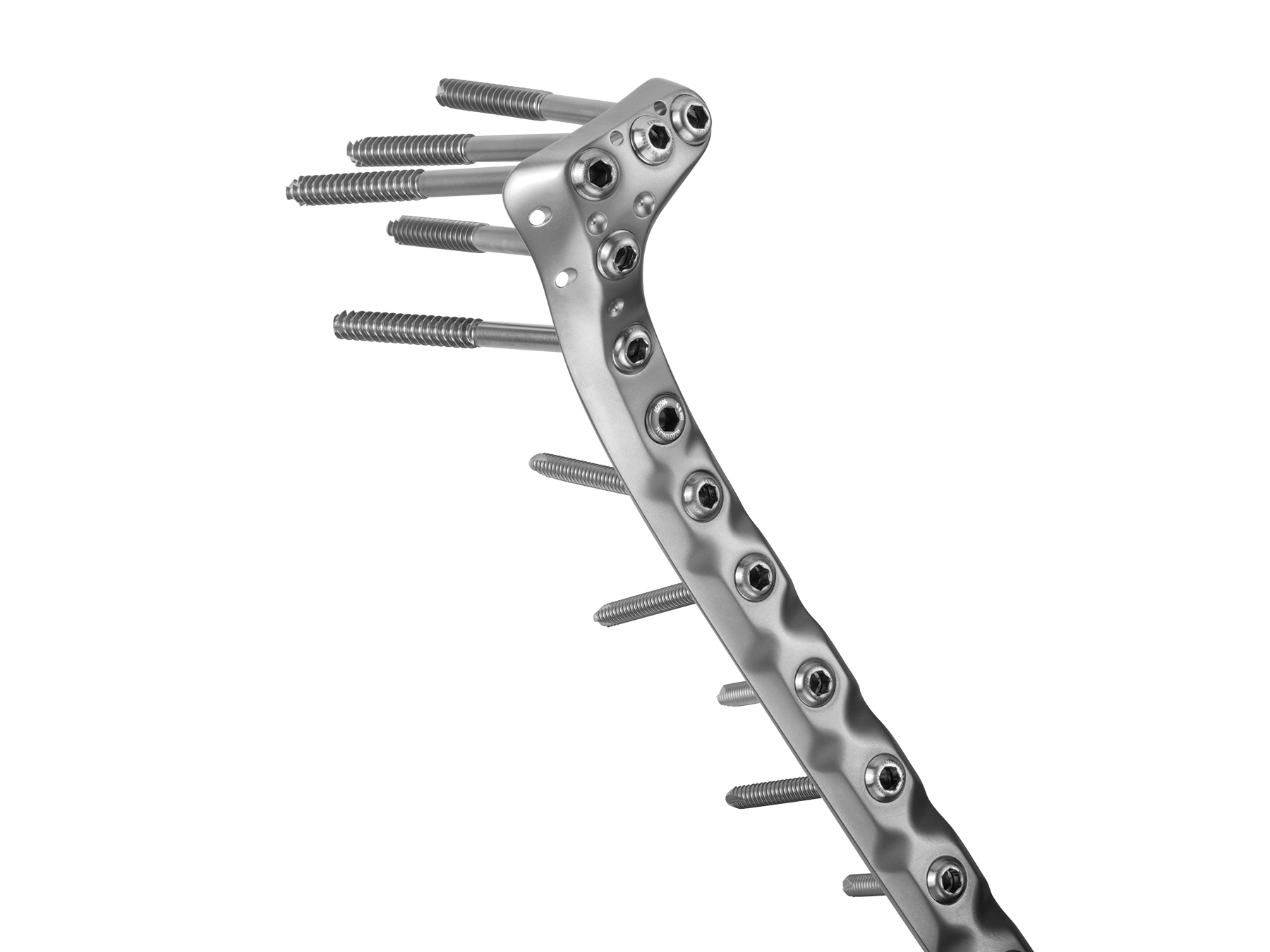

The NCB® Proximal Tibia Plating System allows controlled targeting of cortical and cancellous screws with polyaxial freedom in the treatment of complex fractures of the proximal tibia.

Anatomy

  • Tibia

Product Type

  • Plates and Screws

System Features

The system allows for polyaxial screw placement (30°) with subsequent screw locking. Before locking, the screws can act as lag screws and be used for fracture reduction; a benefit which is not offered with standard locking systems.

MIS Technique

The MIS Guides allow for percutaneous targeting of screws and, thus, smaller incisions. The radiolucent guides permit insertion of plates sub-muscularly to help avoid stripping and damage to soft tissues.

Non-Contact Bridging

Spacers of 1mm, 2mm, and 3mm can be used intraoperatively to hold the plate off the bone. When the plate is “locked” the spacers can be removed and the construct acts like an internal fixator. Keeping the plate off the bone is intended to reduce periosteal damage and blood supply impairment.

Polyaxial (Screw Choices)

The NCB Screw is secured with a locking cap that permits a range of 0°–15° off-center, or a 30° cone of polyaxiality. Cortical and cancellous screws can be used in traditional methods—lagging fragments or preventing rotation. These screws can be locked immediately after insertion, after other screws have been inserted, or not at all. With the ability to lock the construct after all screws have been inserted, screw directions can be adjusted intraoperatively without having to “unlock” the construct. Because the locking cap is not inserted with power equipment, the risk
of cold-welding and cross-threading is minimized.

Specifications

Benefits

Anatomically Designed

  • Anatomically contoured plate with asymmetrical plate cross section to facilitate anterolateral soft tissue coverage; plate head has 6° posterior tilt to match lateral tibial contour.

Strength

  • Placement of divergent screws to increase pull-out resistance paired with the ability to feel bone quality during inserting and tightening of screws.

Minimally-invasive

  • Radiolucent MIS Guides allow submuscular plate insertion with minimal incision.

Education

Literature

NCB® Proximal Tibia System Surgical Technique

Surgical Approach

Zimmer® NCB® Plating System Brochure
