Trabecular Metal Material is made of elemental tantalum (atomic number 73), a chemically stable and biologically inert metal used in orthopedic implants.6 This makes it highly biocompatible.7 Tantalum is the ideal material for this structure, because it has high fatigue strength and a compressive modulus that allows it to bend before breaking.3
Trabecular Metal™ Technology
A Unique, Highly Porous Biomaterial

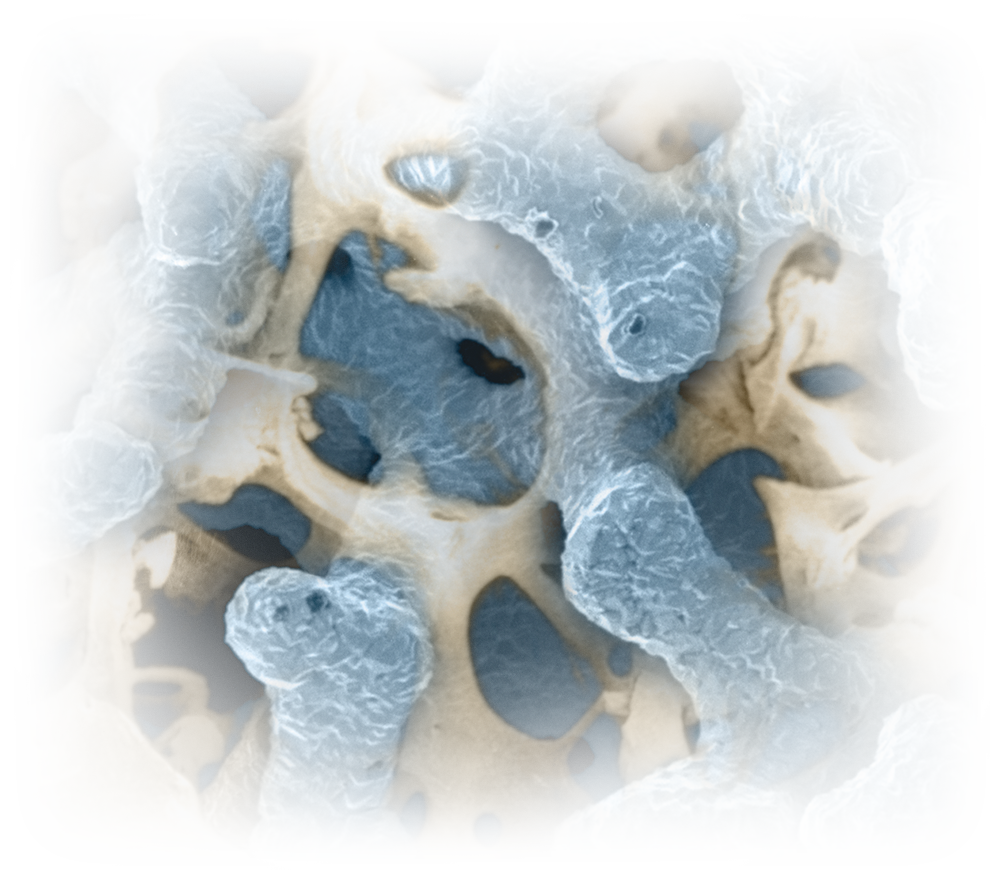

Trabecular Metal Material is made from elemental tantalum with structural, functional, and physiological properties similar to that of bone.1 The material features a 100% open, engineered and interconnected pore structure to support biological fixation and vascularization.1,2 The material has over 20 years of demonstrated clinical use in a variety of orthopaedic applications.3-5

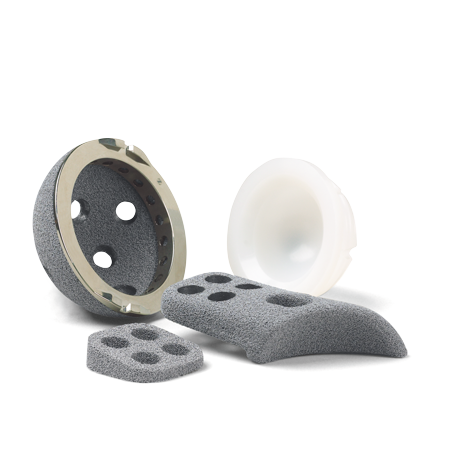

- Hip Reconstruction
- Hip Technologies
The performance of specific components in human subjects has been well-documented in peer-reviewed journal articles, poster exhibits and abstracts. Independent studies have confirmed the structural and mechanical properties of Trabecular Metal material.1-4
- Made from commercially pure elemental tantalum and designed to withstand physiologic loads.1
100% open engineered and interconnected pore structure to support biological fixation and vascularization.1,2
- Up to 80% porosity.1
Low modulus of elasticity similar to cancellous bone for more normal physiological loading which has the potential to reduce stress shielding when used in a monoblock or monolithic application.3
High coefficient of friction vs. cancellous bone for stable initial fixation.3
- Chemically stable and biocompatible material which creates little adverse biological response.6

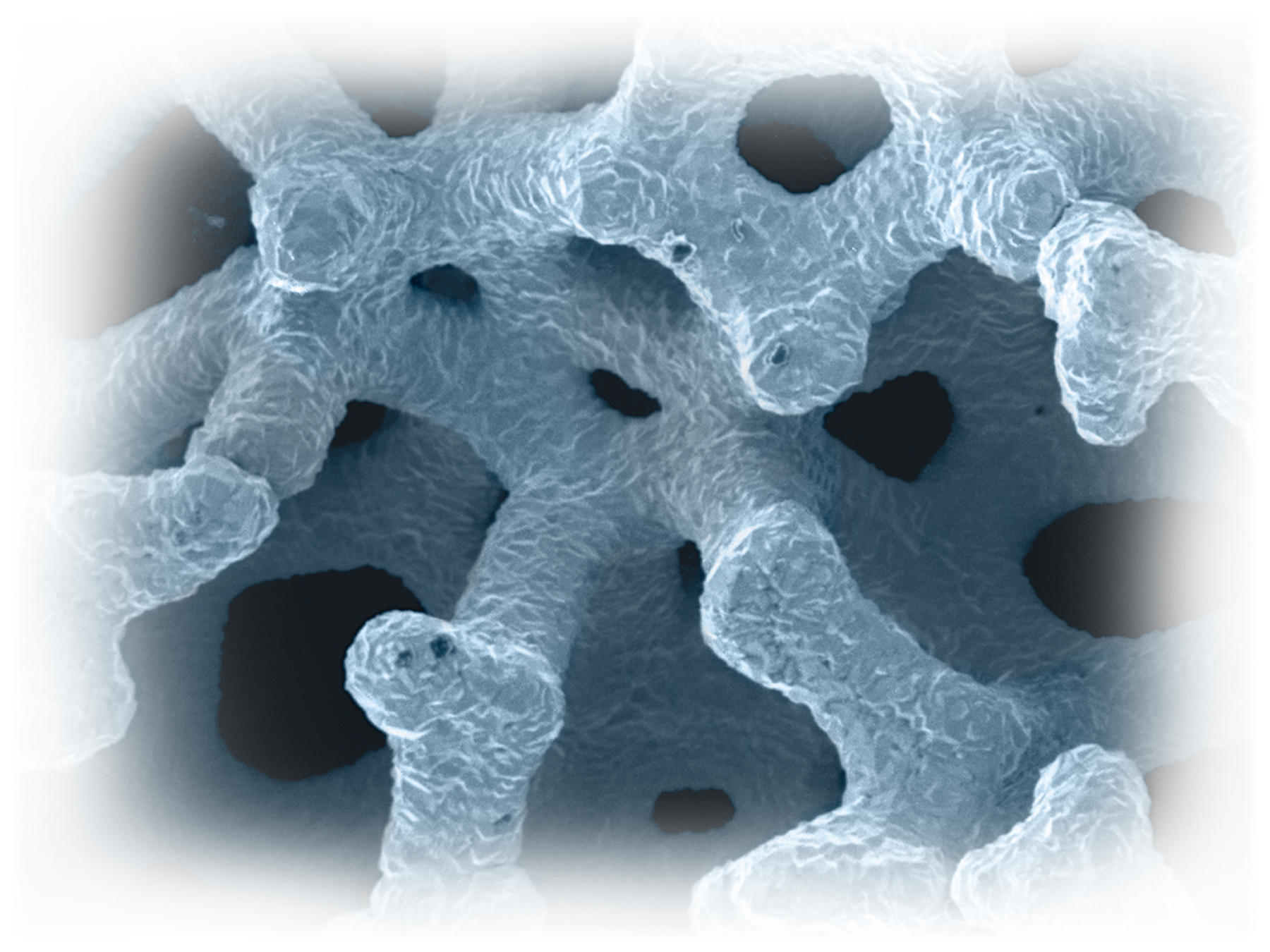

Utilizing a proprietary chemical deposition process, elemental tantalum is deposited onto a substrate, Trabecular Metal’s unique microspiked surface topography.
- Bobyn JD, Hacking SA, Chan SP, et al.
Characterization of new porous tantalum biomaterial for
reconstructive orthopaedics. Scientific Exhibition: 66th Annual
Meeting of the American Academy of Orthopaedic Surgeons; 1999;
- Karageorgiou V, Kaplan D. Porosity of biomaterial scaffolds and osteogenesis. Biomaterials. 2005; 26:5474-5491.
- Zhang Y, Ahn PB, Fitzpatrick DC, Heiner
A, Poggie RA, Brown TD, Interfacial frictional behavior; cancellous
bone, cortical bone, and a novel porous tantalum biomaterial.
Journal Musculoskeletal Research 1999.
- JD Bobyn,
GJ Stackpool, SA Hacking, M Tanzer, JJ Krygier, Characteristics of
Bone In-Growth and Interface Mechanics of a New Porous Tantalum
Biomaterial, The Journal of Bone and Joint Surgery (British
Version), Sept, 1999, 81-B No. 5 pp 907-914.
Shirazi-Adl, M Dammak, G Paiement, "Experimental determination
of friction characteristics at the Trabecular bone / porous-coated
metal interface in Cementless implants", the Journal of
Biomedical Research, Vol 27, 1993, pp 167-175.
J. Biological performance of tantalum. Clinical
- ZRR_WA_2870_14 Biological Evaluation of Implantable Devices Manufactured using Trabecular Metal.
