Customizable Implant Combinations

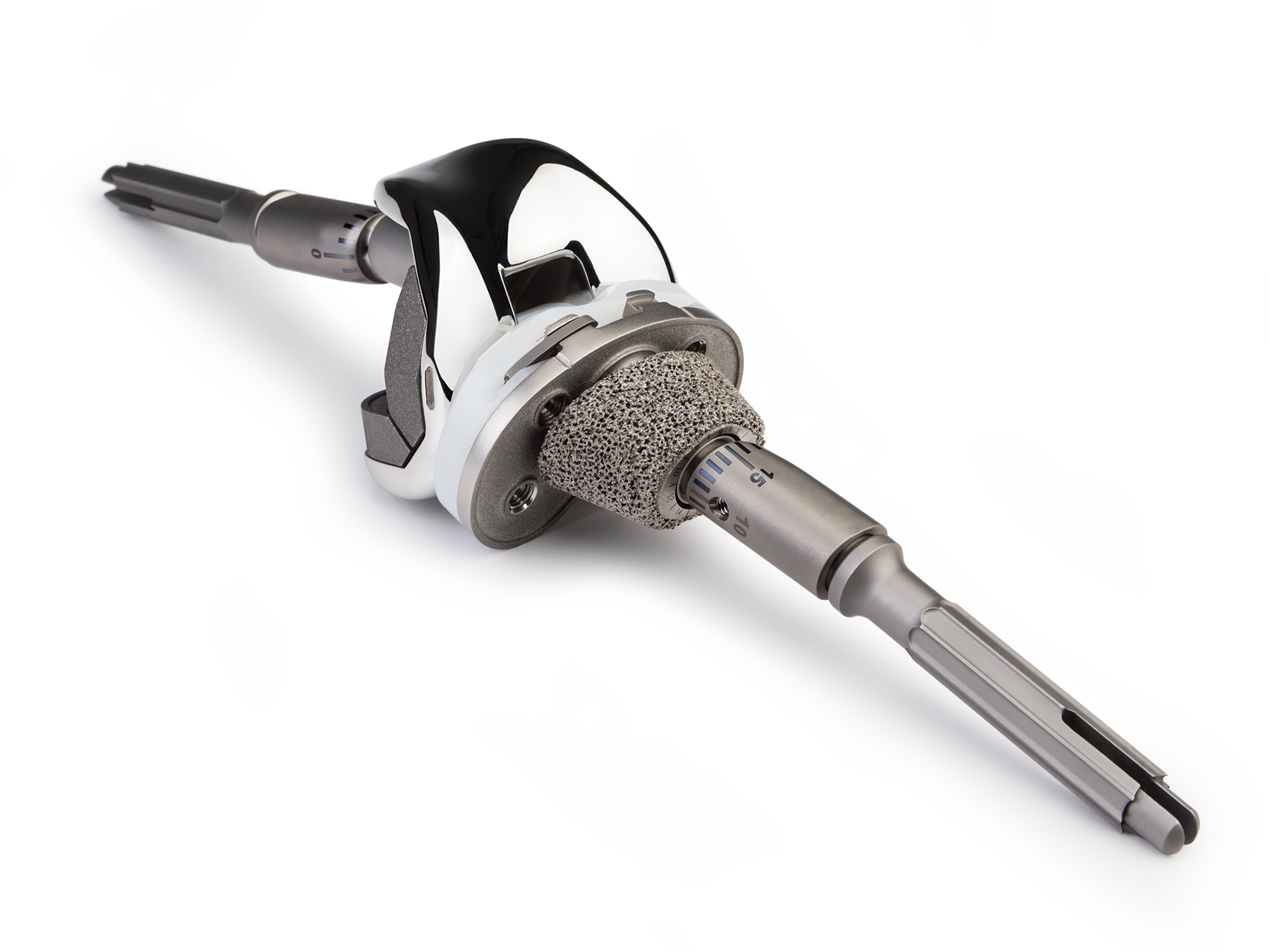

Vanguard® 360 Revision Knee System
Complete Tibial-Femoral Interchangeability
The Vanguard 360 Revision Knee System delivers customizable implant combinations due to independent fit of each component.

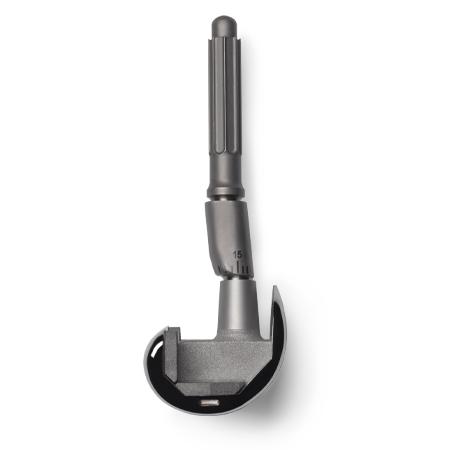

The Vanguard 360 Revision Knee System offers independent sizing of femoral and tibial components, along with the capability to position the universal femoral and tibial stem offsets in a full 360 degree range allow for complete intraoperative flexibility.
- Revision Knee
- Revision Knee

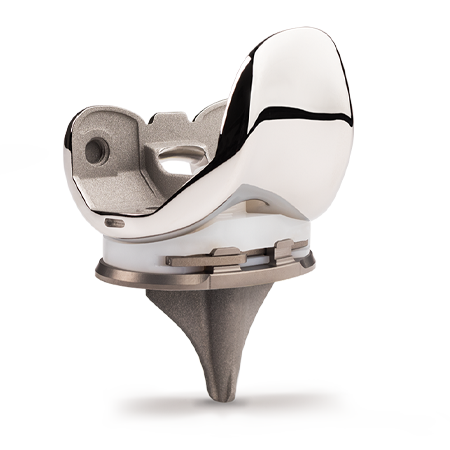

The Vanguard 360 Revision Knee incorporates the tibial design and key Vanguard Complete Knee Systems femoral component design features to deliver customizable implant combinations.
360 PS Constrained (PSC) Bearing: Deeper anterior cutout, 0.5 degrees internal/external rotation, 1 degree varus/valgus constraint
Symmetrical tibial tray design available in nine sizes for optimal tibial coverage
Available in 5, 10 and 15 mm thicknesses
Modular small and large cruciate wing augments provide extra rotational stability and can be used with block augments, offset stem adapters and all stem options

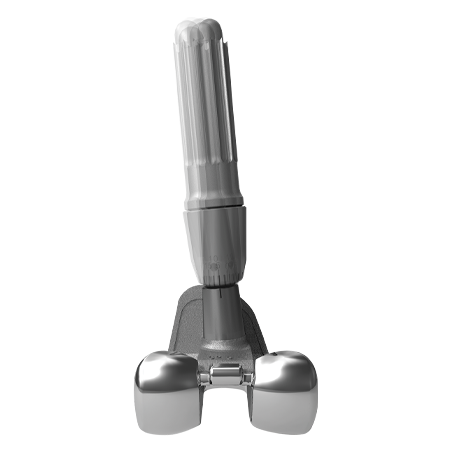

Available in 2.5, 5 and 7.5 mm offset magnitudes
Smooth, grit-blasted and splined stems are available in 40, 80, 120, 160 and 200 mm lengths and a wide range of diameters to provide for component fixation
- Complete tibial-femoral interchangeability with multiple offsets and stem options

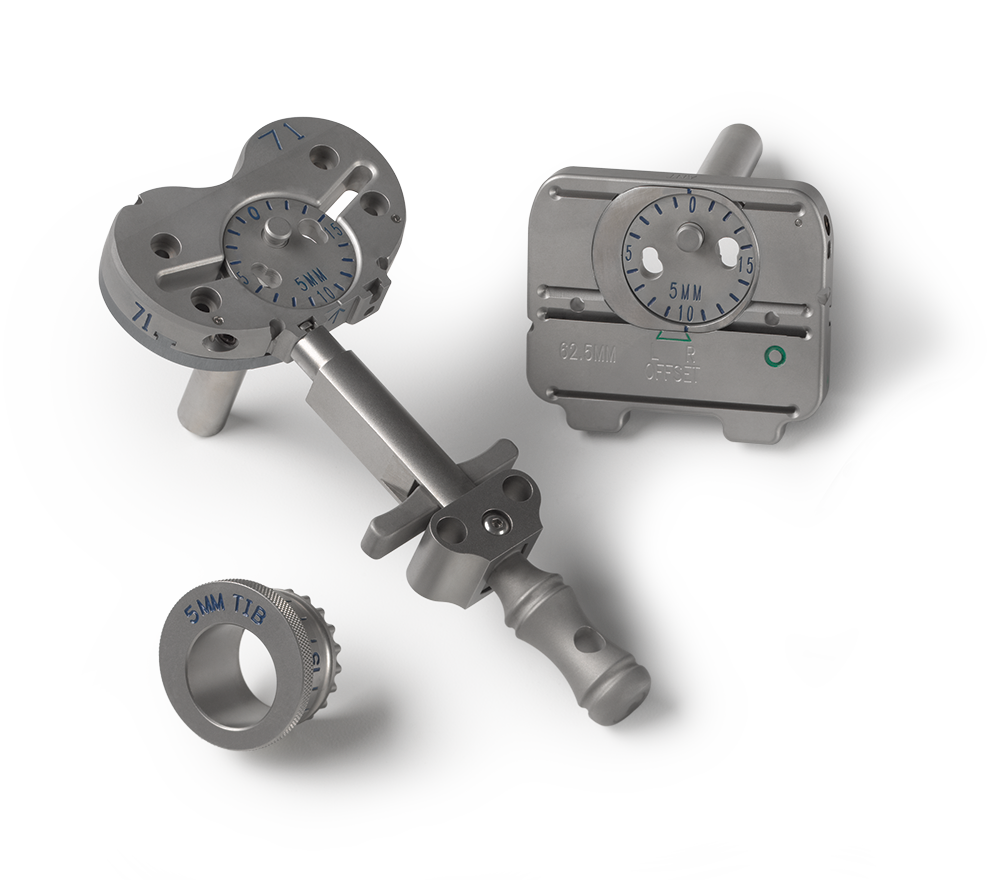

Simplified Instrumentation Platform
- A precise, intuitive instrumentation platform, featuring simplified trial first approach
Independent Distal and Posterior Augments
- Independent distal and posterior augments provide a solution to address bone loss
The Vanguard 360 Revision Knee System offers a seamless transition from a Vanguard Primary Knee. The design features and instrumentation allow surgeons to achieve optimal component positioning and efficiently address unique patient anatomies.
