Versa-Fx® II Femoral Fixation

Versa-Fx® II Femoral Fixation System Surgical Technique
OverviewSystem FeaturesBenefitsEducation

Combining strength with a tube/plate junction

The Versa-Fx® Femoral Fixation System may be used for the internal fixation of supracondylar fractures with displaced intra-articular fragments, with vertical intra-articular extension, and in the patient with multiple lower extremity fractures.

The Versa-Fx® II Femoral Fixation System combines the strength of 22-13-5 stainless steel with a tube/plate junction. Anatomically contoured, the plate is designed to provide optimum flexibility in angle fixation.

A wide selection of sizes, tube/plate angles, and screw hole configurations provide the versatility to use the Versa-Fx II System in a variety of indications, including intracapsular, intertrochanteric, and subtrochanteric fractures (Winquist Type Ill comminuted fractures). The tube plate is available in both keyed and keyless options, with a single set of instruments used for both.

Anatomy

  • Hip & Femur

Product Type

  • Plates and Screw

System Features

The development of the tube/plate system provides the surgeon with a wide range of options.

Anatomically Contoured

The anatomically contoured side plate provides flexibility in angle fixation.

Adjustable Double Pin Guide

The adjustable double pin guide is used to insert the guide pin into the bone at the desired angle. Use anteroposterior and lateral roentgenograms or image intensification to verify correct placement of the guide pin. If using image intensification, verify pin position during insertion.

Linked Lag Screws

Linked lag screws have sharp leading-edge threads designed to help accommodate easy insertion and blunt center threads to accommodate a compression screw

Benefits

Accurate

  • Pin relocator provides accurate reinsertion of guide pin

Variable Options for Optimal Fit

  • System offers a variety of tube angles that range between 130°-150° Compression Tube Plates and 95° or 90° Supracondylar Tube Plates with keyed and keyless tube plate design options. A choice of three thread options combined with a tapered core helps maximize the bone implant interface.

Education

Literature

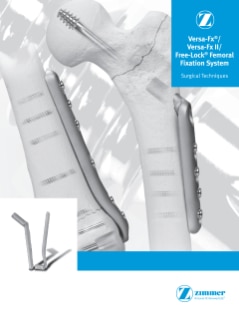

Versa-Fx® II Femoral Fixation System Surgical Technique

Zimmer Biomet Hip Preservation Portfolio
