Phoenix™  Tibial  Nail System

Featuring CoreLock™ Technology

OverviewSystem FeaturesBenefitsEducationVideos

A preassembled embedded locking mechanism

The Phoenix Tibial Nail System features CoreLock Technology that offers a preassembled, locking mechanism for locking all proximal oblique screws and for inboard compression up to 5mm.

Anatomy

  • Hip and Femur

Product Type

  • Intramedullary Nails

System Features

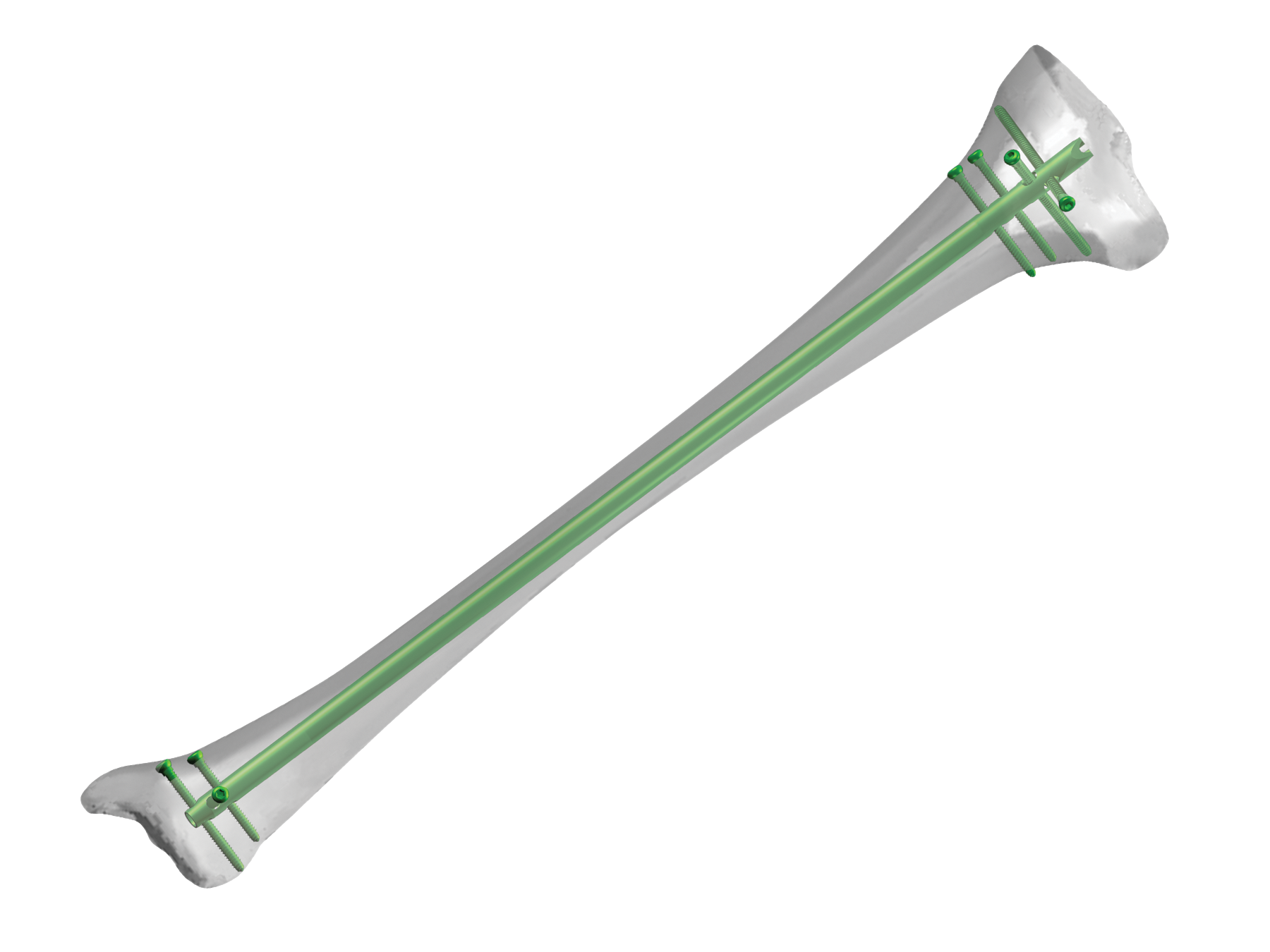

Distally, the tibial nail offers an exceptionally low distal aspect of 4.5mm from the center of the most distal screw hole to the nail tip and 10mm from the center of the second most distal screw hole of the cluster to the nail tip for treatment of very distal fractures.

CoreLock Technology

CoreLock Technology is designed to provide innovation made simple and elegant through deployment of the preassembled, embedded setscrew/locking mechanism. This technology provides the ability to lock proximal oblique screws to nail.

Embedded setscrew/locking mechanism

Since the holes within the embedded setscrew are grooved, proximal screw removal can be achieved without disengaging the embedded setscrew.

Double-Lead Thread Screw

The system features a double-leaded thread design for quick insertion enabling bicortical purchase.

Benefits

Easy Insertion

  • The system is designed to facilitate easy insertion through the 3.5mm inserter connector that retains head of end cap.

Streamlined Workflow

  • Streamlined workflow enabled through color-coded screw and end cap options.

Education

Literature

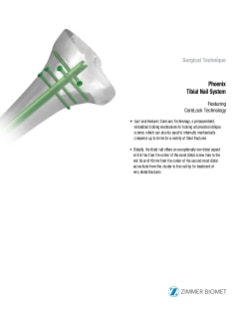

Phoenix Tibial Nail System Featuring CoreLock Technology Surgical Technique

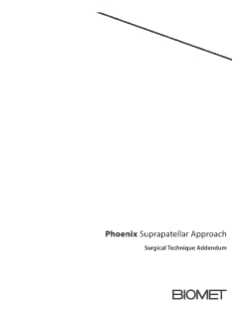

Phoenix Suprapatellar Approach Surgical Technique Addendum

Surgical Approach:The tibial nail is available in outer diameters of 7.5mm, 9mm, 10.5mm, 12mm and 13.5mm at lengths from 240mm-420mm in 10mm increments. The system features a strong, lightweight Radiolucent Targeting Arm that permits radiographic visualization in multiple planes. With its easy to use color-coded instrumentation conveniently contained in a single tray and its innovative implant design, the Phoenix Tibial Nail System is designed to address both patient and surgeon needs.

Videos

Click to play video
Phoenix Tibial Nail Distal Fracture Pattern

Click to play video
Phoenix Tibial Nail Proximal Fracture Pattern
