NCB® Periprosthetic Femur System

For stable, versatile periprosthetic femoral plating

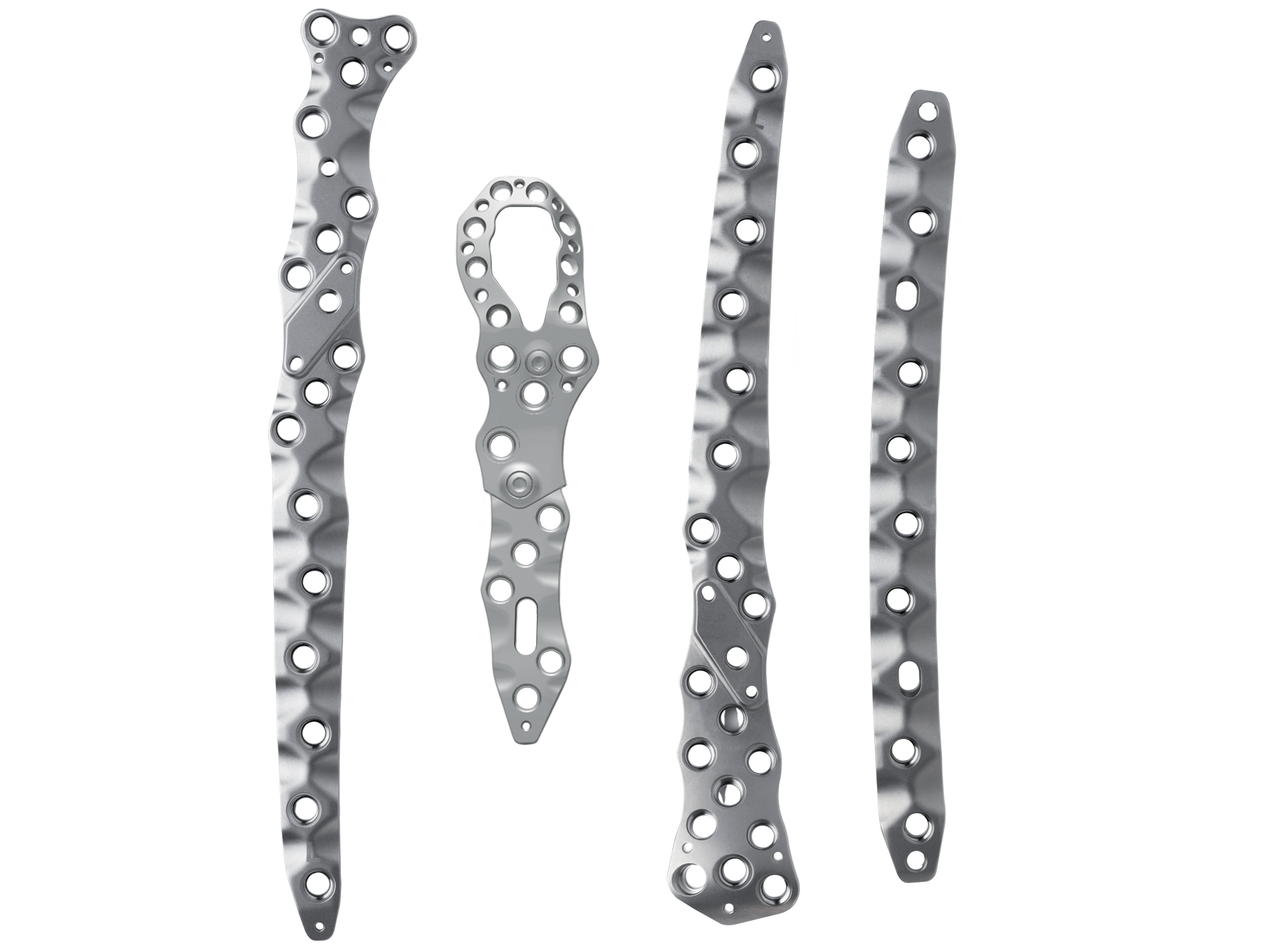

Zimmer NCB Periprosthetic Femur Plate System
OverviewSystem FeaturesSpecificationsBenefitsEducationVideosAdditional Information

Offering solutions for fixation of particularly complex periprosthetic fractures

The NCB (Non-Contact Bridging) Periprosthetic Femur System is a line of polyaxial locking plates for the treatment of femur fractures, particularly periprosthetic femur fractures. The system is indicated for temporary internal fixation and stabilization of fractures and osteotomies of long bones, including: periprosthetic fractures, comminuted fractures, supracondylar fractures, fractures in osteopenic bone, nonunions and malunions.

Anatomy

  • Hips and Femur

Product Type

  • Periprosthetic Plates

System Features

 In the locked mode, the NCB Periprosthetic Femur Plate acts as an internal fixator without contact between the plate and the bone surface, so not to directly impair periosteal blood supply. Screw locking is achieved through the use of locking caps that are threaded into the plate holes. This locking construct provides stability, including when used in osteopenic bone.

 Bi-cortical fixation around the prosthesis

Designed with a wide plate design in the periprosthetic region, a diagonal three-hole pattern to allow for bicortical screw fixation around the prosthesis, and a plate design on the rest of the plate to minimize soft tissue disruption.

Polyaxial Screws

The NCB System Technology allows for polyaxial screw placement (30° cone) with screw locking achieved through the use of locking caps that are threaded into the plate holes. The locking construct allows for improved stability compared to non-locking constructs.

Off-set holes in the three-hole pattern facilitate screw placement around the prosthesis and stable bicortical screw fixation. The holes accommodate 5.0mm NCB Screws, and two types of 4.0mm NCB Screws for use when there is minimal bone around the prosthesis. The central holes can accommodate threaded 5.0mm NCB Unicortical Screws, threaded Cable Buttons and Cables, when Bicortical fixation cannot be achieved.

In the locked mode, the NCB Periprosthetic Plate acts as an internal fixator without contact between the plate and the bone surface, which is intended to minimize the risk of periosteal blood supply impairment. This Non-Contact Bridging concept can also be controlled specifically through the use of 1, 2, or 3mm spacers, which are threaded into the plate holes prior to plate insertion.

Innovative Cable Fixation Options

The products from the Cable-Ready® Cable Grip System are compatible with the NCB Periprosthetic Femur System.

Specialty Instruments

 Slightly oversized titanium nitride coated drill bits and corresponding drill guides are offered with the NCB Periprosthetic Femur System, intended to minimize the risk of cracks in the cement mantle when placing screws around a cemented prosthesis.

>MIS Guide

Fully radiolucent targeting devices are available, allowing MIS techniques to be used for the NCB Periprosthetic Proximal Femur and NCB Periprosthetic Distal Femur Plates.

Specifications

Benefits

Versatile

  • The locking construct offers stability especially in osteopenic bone. Before locking, the screws can act as lag screws and be used for fracture reduction; a benefit which is not offered with standard locking systems.

Anatomically Designed

  • Includes shaped scallops, to facilitate plate contouring across solid cross sections, away from holes.

Robust

  • Offers multiple plate and screw options to best fit the patient’s needs.

Education

Literature

NCB® Periprosthetic Femur System Surgical Technique

Surgical Approach: The NCB Periprosthetic Femur System was designed for stable, versatile periprosthetic femur plating acting as an internal fixator without contact between the plate and bone surface, so not to directly impair periosteal blood supply.

Zimmer® NCB® Plating System Brochure

Videos

Click to play video
Zimmer NCB Periprosthetic Femur Plating System

Click to play video
NCB Peri-Prosthetic Plating Intro

Click to play video
Zimmer NCB Sawbone Demo

Click to play video
Introduction to NCB PP

Additional Information

Tailored resources for your patients.

Find videos, articles, and interactive content to guide your patients throughout their surgical journey on ReadyPatient.com, our dedicated patient recovery site.
