A.L.P.S.®  Small Fragment System

Complete Locking & Non-Locking Small Fragment System

A.L.P.S.® Small Fragment Plating System Surgical Technique

Surgical Technique
OverviewSystem FeaturesBenefitsEducation

Hybrid plating technology for compression and locked fixation

The A.L.P.S. ® Small Fragment System combines a traditional plating system with the benefits of locking screw technology. The hybrid construction of this plate is designed to offer the ability to combine standard interfragmentary compression with the added stability of fixed angle locking. This construct is intended to protect the compression and lag screws while providing stability across extensive comminution, unstable metaphyseal fractures or in osteopenic bone.

Anatomy

  • Forefoot
  • Midfoot
  • Hindfoot
  • Ankle

Procedure

  • Plates and Screws

System Features

Intra-articular and epiphyseal fractures are frequent indications for interfragmentary fixation. To apply compression across the fracture site, the screw threads must engage only the far fragment. If the screw threads engage the near cortex, the fracture will be distracted, and compression will not be possible.

System Features

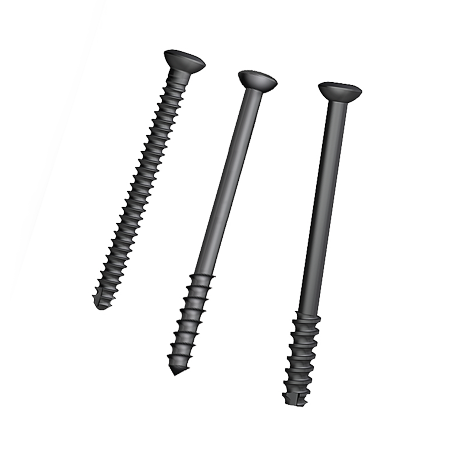

Interfragmentary Fixation

Interfragmentary fixation uses lag screws to apply compression across the fracture surface. The 3.5 mm cortical screws are generally selected for use in diaphyseal bone. The 4.0 mm cancellous bone screws are generally used in metaphysical or osteopenia bone.

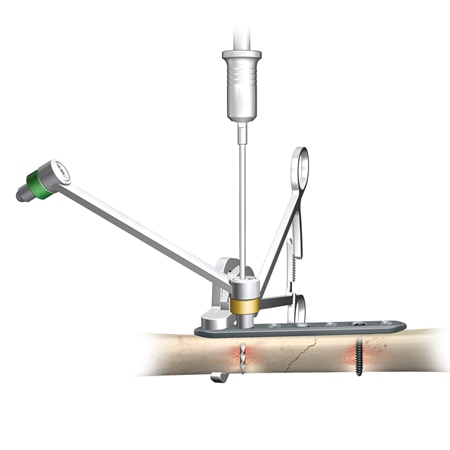

Dynamic Compression and Eccentric Insertion

The system is designed to offer easy-to-use, intuitive instrumentation that provides dynamic compression, enabled through the combination of the hybrid construction of the plate and the drill guide, depth gauge and screw holder sleeve.

Plate End Retractor

The retractor is designed to retract soft tissue when accessing the terminal screw holes of the plate.

Benefits

Systematic Efficiency

  • The versatility of the instrument trays allows for the entire system to be housed in one large base or split into a separate instrument and implant base. The trays contain three-dimensional graphics for rapid implant and instrument identification, enhancing both surgical and processing efficiencies.

Maximize Treatment Options

  • The small fragment system is a titanium plate and screw system that fuses locking screw technology with conventional plating techniques. The set was designed to maximize treatment options managing fractures requiring small fragment fixation, as well as, serve as the core system for additional anatomic implants. This reflects numerous functional requirements of our customers and presents the opportunity to reduce procedural costs.

Education

Literature

A.L.P.S.® Small Fragment System Surgical Technique

Surgical Approach:

The A.L.P.S. Small Fragment System combines our traditional system with the benefits of the locking screw technology design to provide a user-friendly experience.

Tailored resources for your patients.

Find videos, articles, and interactive content to guide your patients throughout their surgical journey on ReadyPatient.com, our dedicated patient recovery site.
Visit The ReadyPatient
