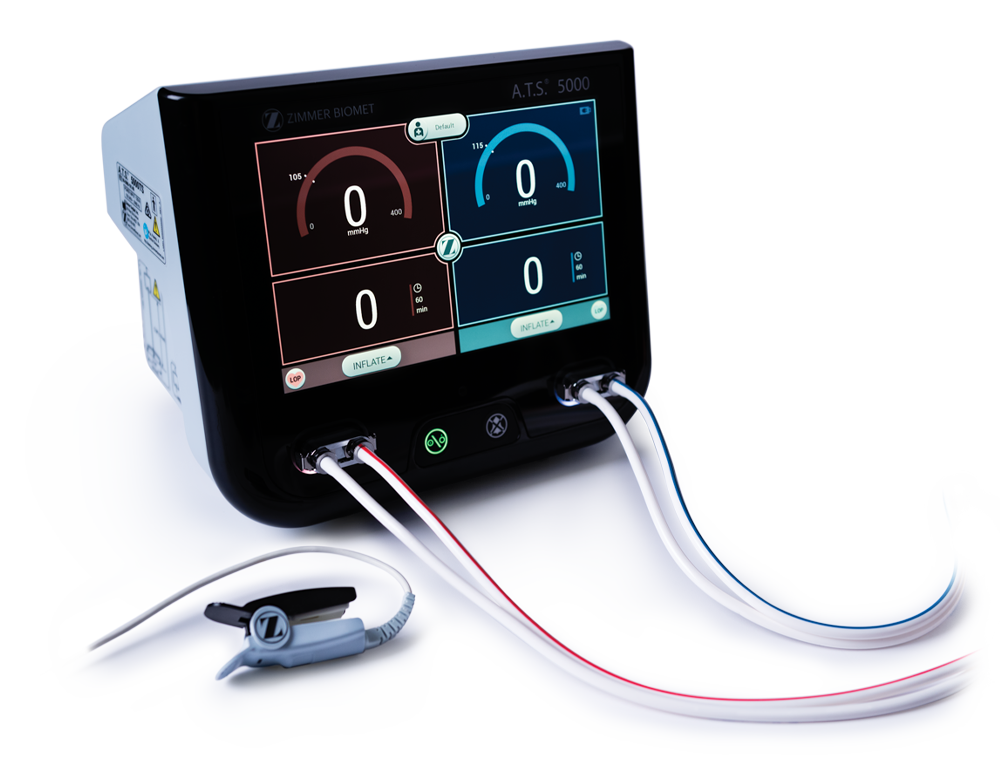

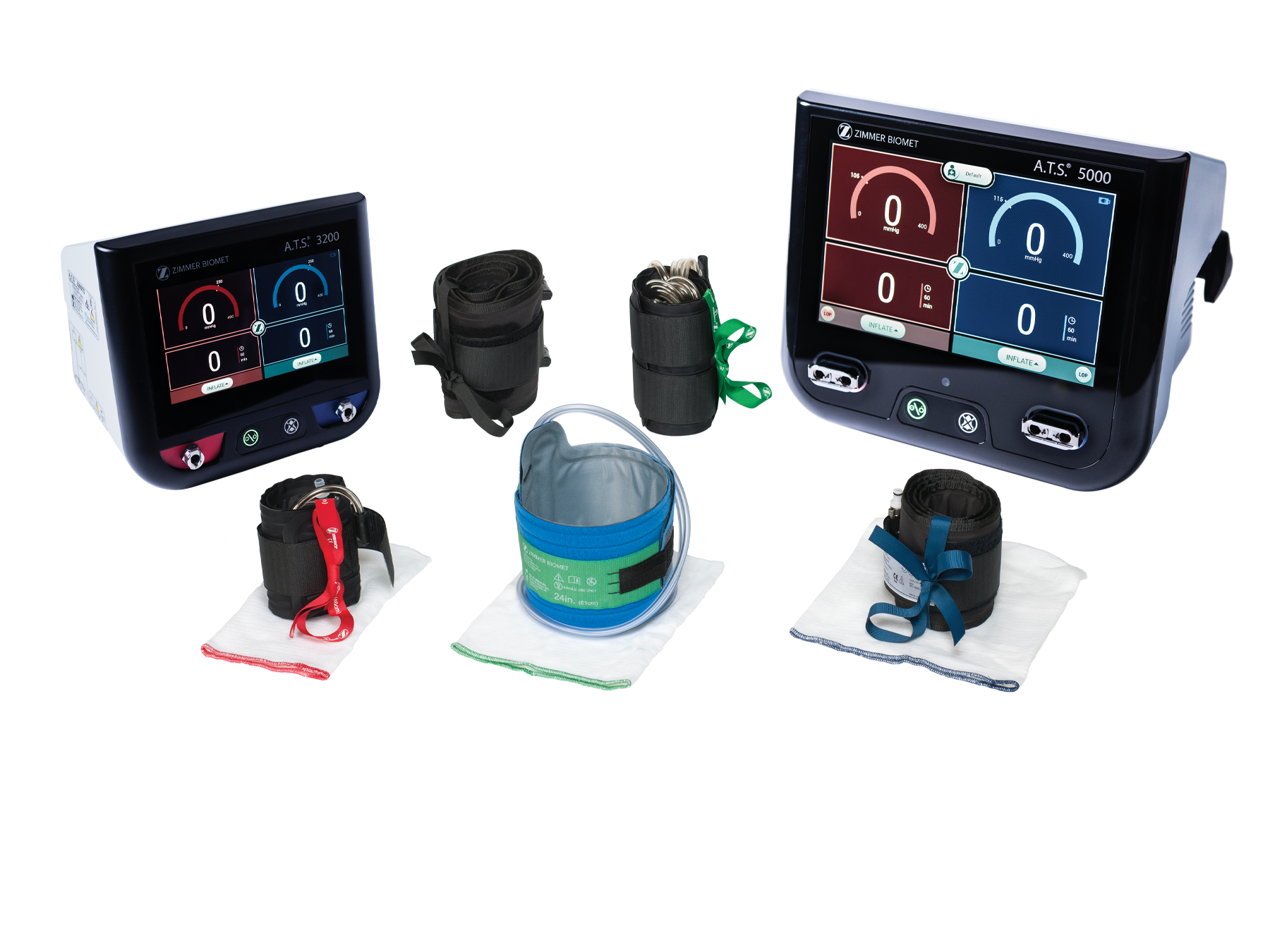

A.T.S.® 5000 & 2200
Tourniquet Systems

OverviewKey Data PointsSystem FeaturesBenefitsVideosAdditional Information

A Personal Focus.
A Personalized Fit.

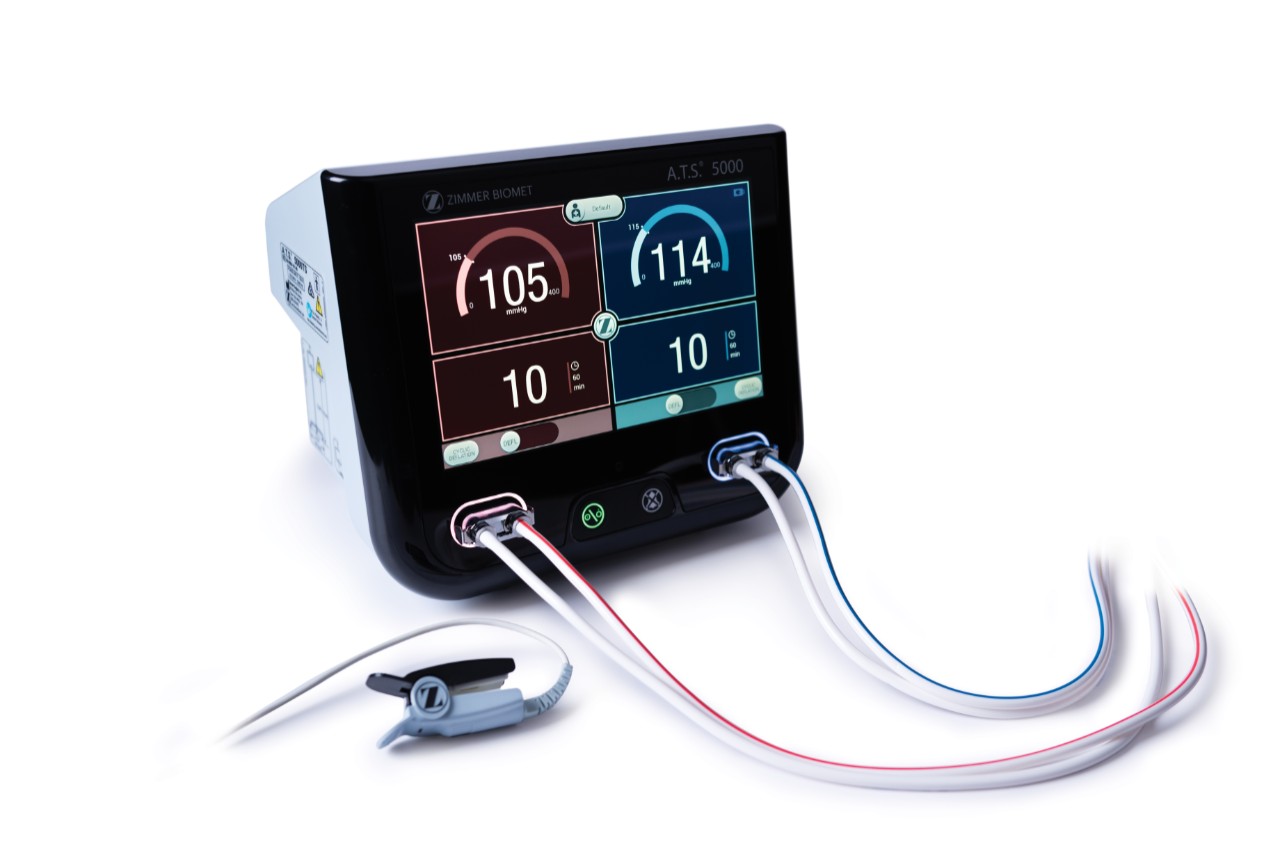

The goal of Zimmer Biomet’s dual port tourniquet systems has always been to reduce post-operative tourniquet pain for patients. The newest addition to our tourniquet offerings, the A.T.S. 5000, combines Personalized Pressure® Technology with new customizable user preferences to provide a personalized experience for patients and healthcare professionals without disrupting workflow.

  • Personalized Pressure® Technology
  • Limb Occlusion Pressure (LOP)
    • EZ and Distal
  • Customizable Surgeon Protocols
  • Dual Port
  • Dual Cuff
  • Touchscreen User Interface
  • Lithium Ion Battery - 6 hours

No two patients are the same – that’s why our A.T.S. 5000 treats every patient with Personalized Pressure® Technology. Let’s discuss the ABCs of LOP.

Absolute Minimum

A

LOP technology was designed to calculate a patient’s pressure at an individual level and apply the minimum amount of tourniquet pressure needed to occlude a limb at a specific time for a specific patient.

Bloodless Field

B

Tourniquet cuff pressures that are too low could result in bleeding distal to the cuff which can result in undesirable blood in the surgical field and blood loss. Hence, setting tourniquet pressures too low can cause pooling of blood in the field.

Confidence

C

With the minimal time required, ease of use and well documented benefits of lower tourniquet pressures, the A.T.S. 5000 Automatic Tourniquet System offers the healthcare professional an option in setting the tourniquet cuff pressures - always keeping the final setting of pressure in their hands.

System Features

Tourniquet Systems Brochure

ABC's of LOP

The A.T.S. 5000 was designed with surgeon preferences and patient outcomes in mind, offering ways to truly differentiate and personalize the experience for both patient and provider.

Personalized Pressure®  Technology

Personalized Pressure can help surgeons choose a more individual, often lower, cuff pressure. Lower tourniquet cuff pressure reduces post-operative wound complications after TKA.1*

Applying lower tourniquet pressure has been found to result in less post-operative pain. One study demonstrated that an average thigh tourniquet pressure of 230mmHG resulted in statistically significant lower pain over a multi-day recovery period versus a tourniquet pressure of 350mmHG.2*

*The A.T.S. 5000 was not used in this study and has not been clinically evaluated to reduce post-operative pain and/or wound complications.

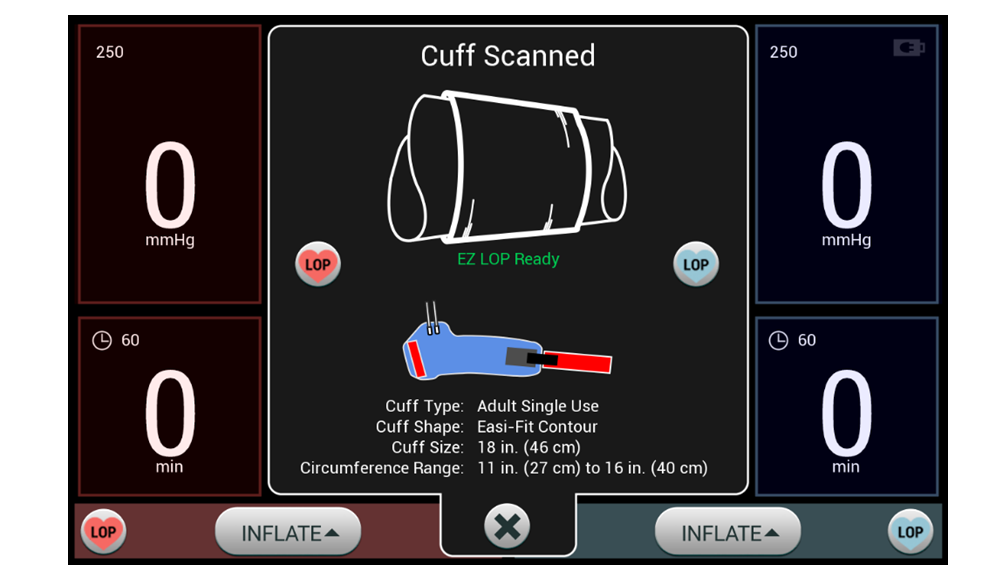

EZ LOP Measurement

LOP measurements can be obtained without an additional sensor, meaning the measurement can be performed much closer to cuff inflation time. The integrated barcode scanner automatically recognizes and scans compatible disposable cuffs, displaying all details on the device’s touchscreen interface.

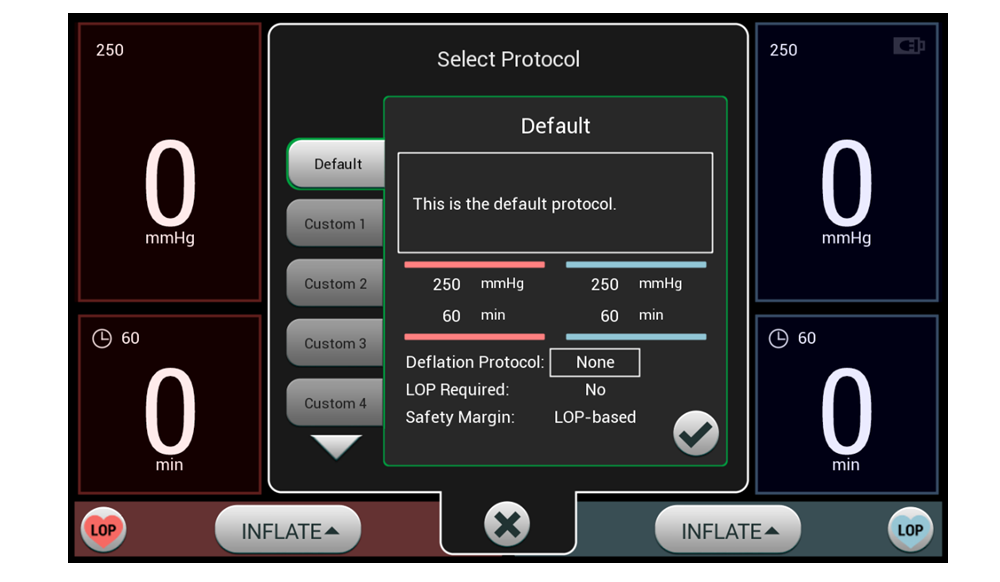

Surgeon Protocols

With just two touches on the home screen, surgeons can access Protocols and set up their personalized profile. Pressure, time, LOP, safety margins and deflation preferences can be customized beyond the typical Default setting.

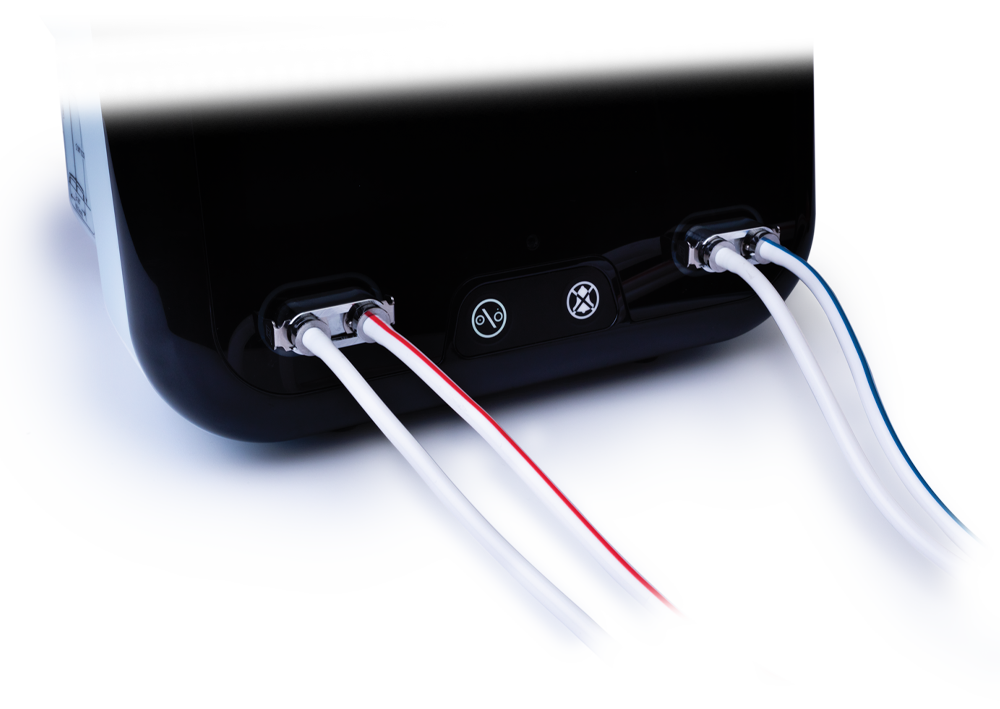

Dual Port Technology

One port is dedicated to inflating and deflating the cuff, the other is dedicated to monitoring pressure.

Line Occlusion Detection (Acoustic Reflectometry)

Technology that is intended to help identify a line occlusion between the machine and the cuff.

Pre-Op Cuff Test

Technology that allows for bedside testing of cuff pre-operatively to ensure proper function.

Cuff Alert

Technology intended to prevent setting the unit to STANDBY with pressure in the tourniquet cuff.

Automatic IVRA Cuff Lock Out

Technology intended to prevent accidental dual cuff release by prompting users to confirm the intent to deflate a second cuff.

Advanced Leak Detection

Technology that monitors a cuff for minor variations intraoperatively with the intention of reporting potential cuff/hose leaks.

Benefits

Personalized Pressure Technology

Personalized Pressure can help surgeons choose a more individual, often lower, cuff pressure.1

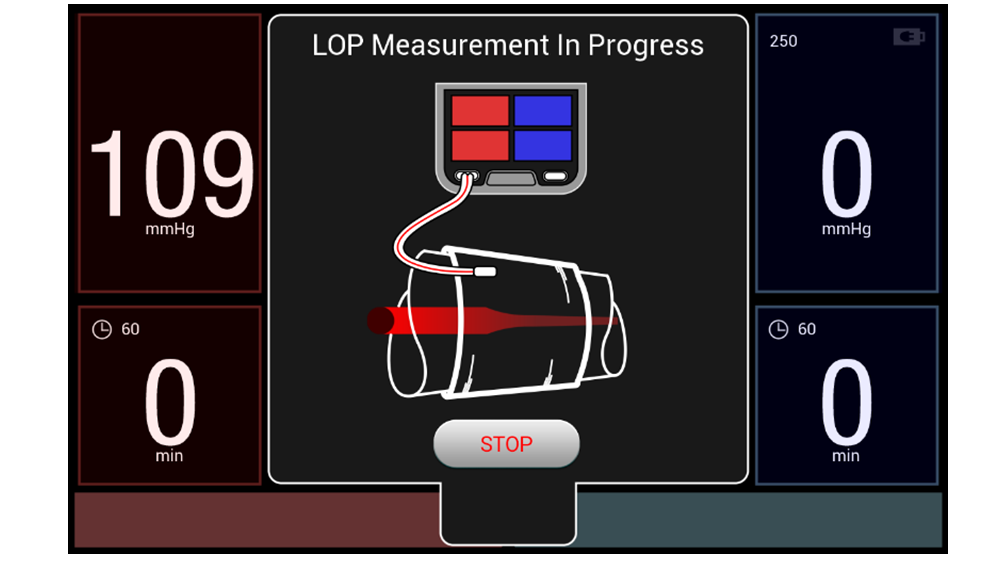

Limb Occlusion Pressure (LOP)

LOP Technology was designed to calculate a patient’s pressure at an individual level and apply the minimum amount of tourniquet pressure needed to occlude a limb.

EZ LOP Method

Without the need to utilize a non-sterile sensor during LOP measurement, workflow is simplified.

Line Occlusion Detection (Acoustic Reflectometry)

This technology is intended to decrease the unintentional risk of leaving pressure in a tourniquet cuff.

Automatic IVRA Cuff Lock Out

Without additional steps or notification, the machine will prompt users to confirm the intent to deflate a second cuff. Improper deflations have resulted in serious injuries and death.

Videos

Click to play video
A.T.S.® 5000 Automatic Tourniquet System

Disposable Contour Cuffs
