JuggerKnot® All-Suture Anchors

OverviewSystem FeaturesEducationVideosAdditional Information

Clinical Results, Versatile, and Strong

The introduction of the 1.4 mm JuggerKnot All-Suture Anchor in 2009 revolutionized soft tissue fixation in Sports Medicine. This award winning* 100% suture based anchor system has quickly evolved into a family of anchors that offers one of the widest range of options for a multitude of different procedures.

Clinical Results

  • One study of 18 patients, performed with the 1.4 mm anchor, demonstrated clinically improved patient outcomes and fibrous tissue complete bony healing or combined fibro-osseous healing in the anchor tunnel1

Versatile

  • Gain access to this robust soft anchor system, which includes seven different size offerings and size specific instrumentation.

Strong

  • Strength is equal to or greater than some anchors two or three times larger2  and*** high pullout strength ranging from 20-120 lbs., depending on size of anchor3,4

System Features



JuggerKnot Soft Anchor - 1.4 mm

  • Most commonly utilized for soft tissue to bone fixation in the shoulder

  • Designed with a #5 polyester sleeve and loaded with a #1 MaxBraid™ suture

  • 54 lbs. anchor pullout strength in cortical bone3

  • Unique instrumentation includes:

    • Curved: 23˚ curvature allowing the ability to drill a hole perpendicular to bone surface at anchor site
    • Percutaneous: Allows anchor to be inserted into the skin through a 2.4 mm diameter guide, minimizing tissue trauma
    • Centering Sleeve: Assists with consistent anchor placement via the curved guide by centering anchor in the drill hole



JuggerKnot Soft Anchor 1.5 mm

  • Most commonly utilized in the shoulder for labral tears

  • Designed with a #6 polyester sleeve and loaded with a #2 MaxBraid suture

  • 65 lbs. anchor pullout strength in cortical bone2

  • Unique instrumentation includes:
    • Curved: 23˚ curvature allowing the ability to drill a hole perpendicular to bone surface at anchor site
    • Percutaneous: Allows anchor to be inserted into the skin through a 2.4mm diameter guide, minimizing tissue trauma
    • Centering Sleeve: Assists with consistent anchor placement via the curved guide by centering anchor in the drill hole



Education

Literature

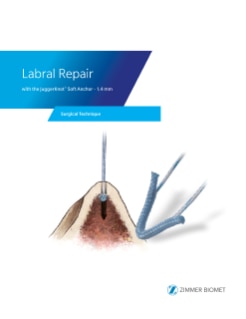

JuggerKnot 1.4 mm Soft Anchor Surgical Technique

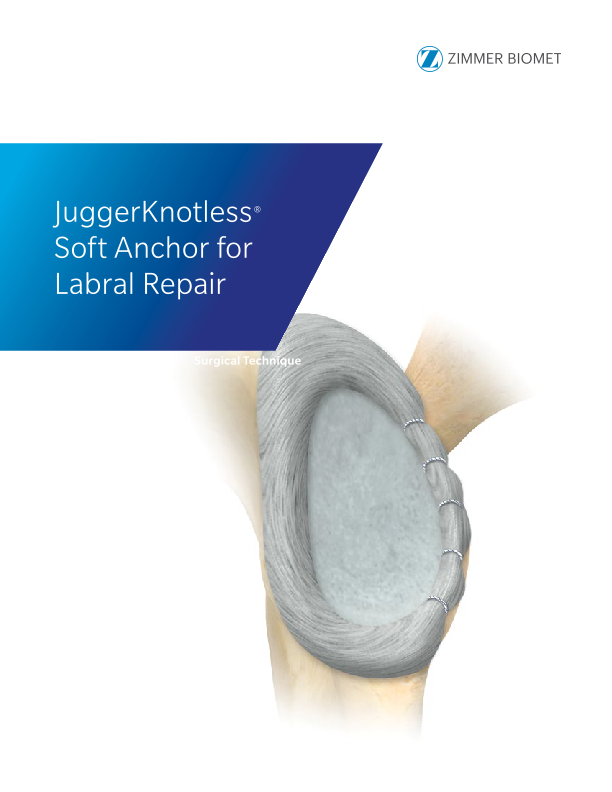

JuggerKnotless® Soft Anchor for Labral Repair Surgical Technique

Low Profile/Trans-Cuff SLAP Repair with JuggerKnot Soft Anchor – 1.4/1.5 mm with Percutaneous Instrumentation Surgical Technique

JuggerKnot and JuggerKnotless Soft Anchor All-Inclusive Brochure

JuggerKnot Soft Anchor Indications Flyer

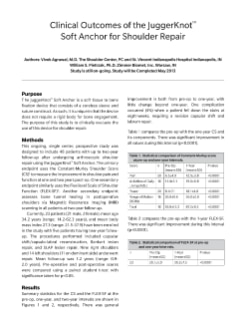

Clinical Outcomes of the JuggerKnot Soft Anchor for Shoulder Repair

Shoulder Labrum Portfolio

Videos

Click to play video
Labral Repair with the JuggerKnot Soft Anchor – 1.4mm Video

Watch animation

Additional Information

Tailored resources for your patients.

Find videos, articles, and interactive content to guide your patients throughout their surgical journey on ReadyPatient.com, our dedicated patient recovery site.
