Featuring Dual Stage CoreLock™ Technology
Pre-Assembled Dual-Stage Locking Mechanism

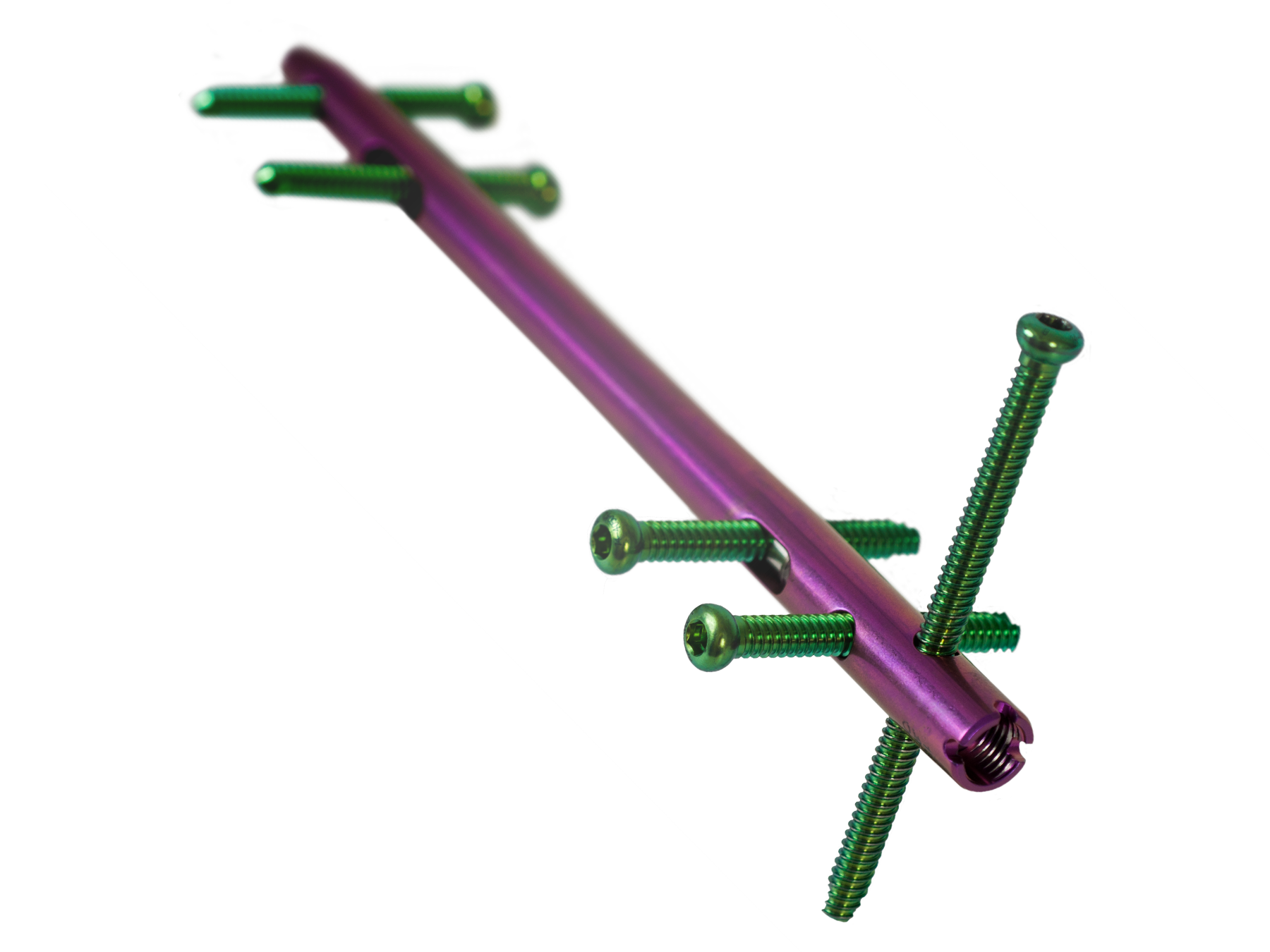

The Phoenix™ Ankle Arthrodesis Nail is composed of titanium alloy and features proprietary CoreLock™ Technology. This distinct, dual-stage locking mechanism is pre-assembled and embedded in each nail, providing up to 7mm of internal tibiotalar compression, followed by independent locking of the calcaneal screws. The nail offers a static screw site proximally and a 10mm dynamic compression slot, both of which accommodate 5.0 mm double lead cortical screws.
- Intramedullary Nail
- Ankle: Tibiotalocalcaneal (TTC) Arthrodesis

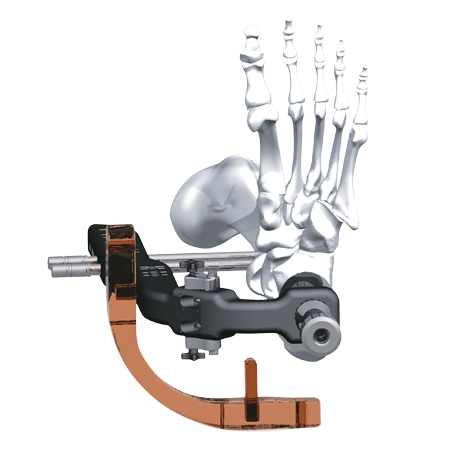

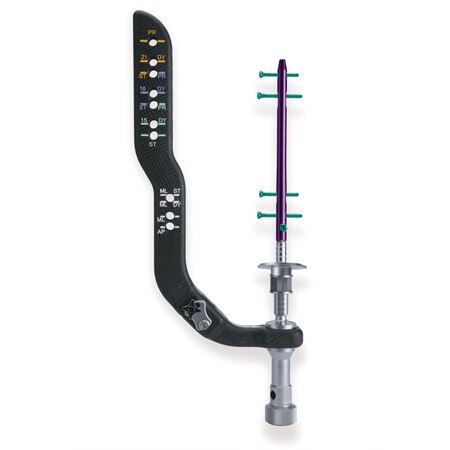

The system features a strong, lightweight radiolucent targeting arm that permits radiographic visualization in multiple planes, and can provide 30mm of axial compression across both the ankle and subtalar fusion sites. When additional fixation and/or control of rotation is desired, the targeting arm can accurately target an oblique screw on either side of the nail.

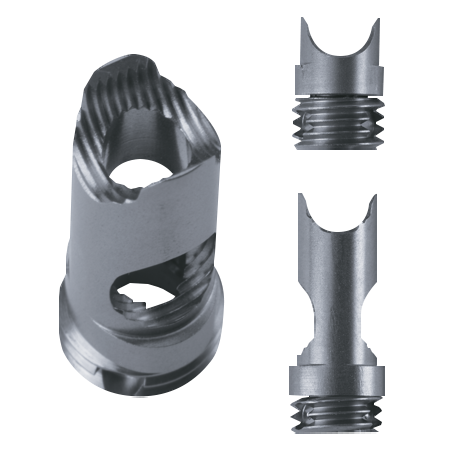

This system features proprietary CoreLockTM technology which represents the only dual stage internal compression/locking mechanism currently available today. CoreLockTM mechanisms are designed with serrated surfaces that interdigitate with the screw threads for a secure, mechanical lock— not a friction lock. This feature also allows for screws to be removed without having to disengage compression and/or locking mechanisms.
PA Screw Alignment Guide Arm
When the Targeting Arm is positioned to prepare the first tibial or talar screw, a radiolucent PA Alignment Guide Arm (14-440051 ) can be attached to indicate the location and trajectory of the calcaneal PA screw prior to initial insertion. This Guide will also indicate if the nail is rotated properly within the canal.
Color anodized Titanium alloy
Diameters: 10, 11, 12mm
Lengths: 150,180, 210, 240, 270, 300mm
7.0mm onboard compression hole
Allows up to 7mm of Internal Tibiotalar Compression in select nails
5.0mm Diameter (20-60mm in 2mm increments), (60-110mm in 5mm increments)
Allows secure mechanical locking of multiple screws to the nail
Screws can be removed without disengaging the setscrew
0, 5, 10, 15, 20mm
1 case (3 trays)
- The System is capable of treating varying patient anatomies, the Phoenix Ankle Arthrodesis Nail is universal and available in 10mm, 11mm, and 12mm diameters—all of which are available in lengths of 150mm - 300mm
- The system features a strong, lightweight radiolucent targeting arm that permits radiographic visualization in multiple planes, and can provide 30mm of axial compression across both the ankle and sub-talar fusion sites. When additional fixation and/or control of rotation is desired, the targeting arm can accurately target an oblique screw on either side of the nail.
- With easy to use color-coded instrumentation conveniently contained in a single tray, the Phoenix Ankle Arthrodesis Nail System addresses both patient and surgeon needs
