The Subchondroplasty®
 (SCP® ) Procedure

Watch Product Animation

4 Min Watch
OverviewKey Data PointsProduct FeaturesSpecificationsBenefitsEducationVideosAdditional InformationRelated Products

Offering an Early Treatment Option for Your Patients

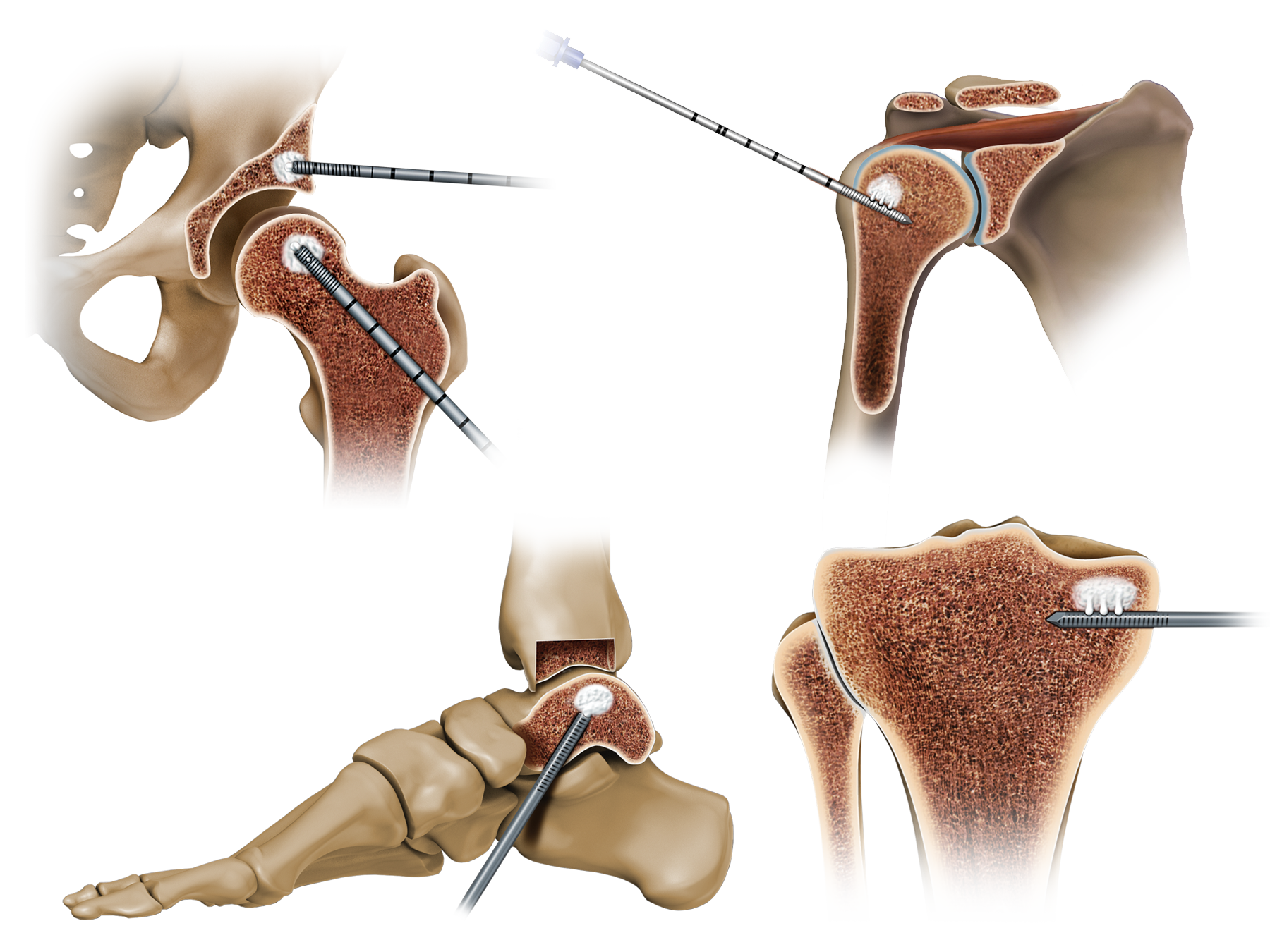

The Subchondroplasty Procedure (SCP) is a minimally-invasive, fluoroscopically-assisted intervention that targets and fills subchondral bone defects, often called Bone Marrow Lesions (BML) with AccuFill® Bone Substitute Material.

AccuFill BSM is an engineered calcium phosphate mineral compound, a bone graft substitute, that mimics the properties of cancellous bone, resorbs and is replaced with new bone during the healing process.1,2

The SCP Procedure is usually performed along with arthroscopy for visualization and treatment of findings inside the joint. In some cases, an open or mini-open procedure is necessary for access to the defect.

Philosophies

  • Early Intervention

Application

  • Knee, Foot & Ankle, Hip, Shoulder

Peer-reviewed data demonstrate sustained pain reduction, improved function and quality of life after the SCP Procedure.3,4

System Features

AccuFill BSM Prefill Kit Flyer

Download PDF

The minimally-invasive SCP procedure is usually performed along with arthroscopy for visualization and treatment of findings inside the joint. In some cases, an open or mini-open procedure is necessary for access to the defect.

Bone defects are filled with AccuFill Bone Substitute Material (BSM), a proprietary, flowable, biomimetic bone substitute.1,2

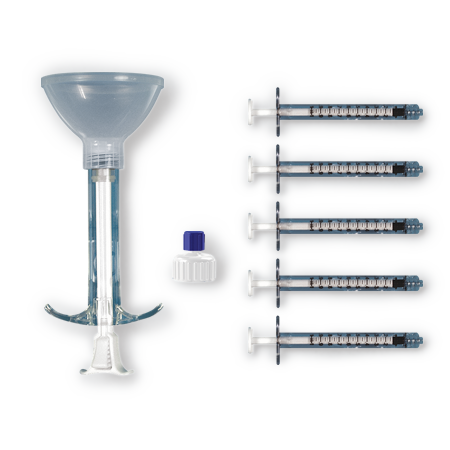

AccuFill BSM is available in prefilled (PF) mixing and saline syringes. The prefilled kit includes all components to hydrate and mix AccuFill BSM in a closed mixing system.

The SCP procedure fills bone defects with AccuFill BSM, a truly-injectable bone substitute material

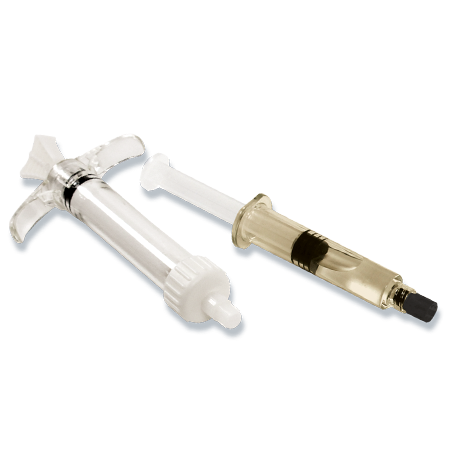

AccuFill PF BSM Kit

For consistent, reproducible hydration and mixing of AccuFill Bone Substitute Material (BSM). Fewer procedural steps with user-friendly design and technique.

AccuFill BSM

Nanocrystalline*, highly porous injectable calcium phosphate (CaP) that mimics the chemical composition and crystalline structure of natural human bone mineral.1,2

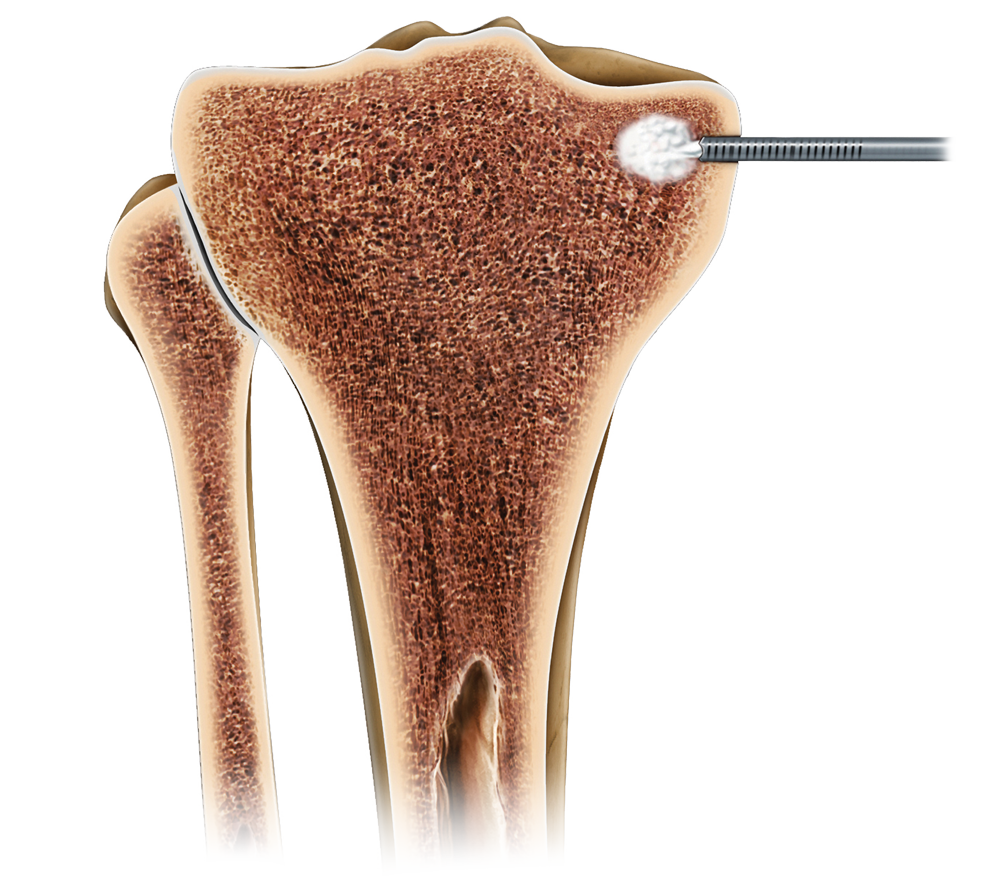

Injected AccuFill BSM

An engineered calcium phosphate compound that flows readily to fill subchondral bone defects, the crystalizes and sets in an isothermic reaction at 37 degrees C to form a nanocrystalline,* microporous scaffold in the bone. AccuFill BSM is replaced with new bone during the healing process.

AccuMix Mixing System

Hydrates and mixes AccuFill BSM

Closed mixing system

Controlled, consistent mixing

Closed transfer to injection syringes – No loss of mix

User-friendly design, technique

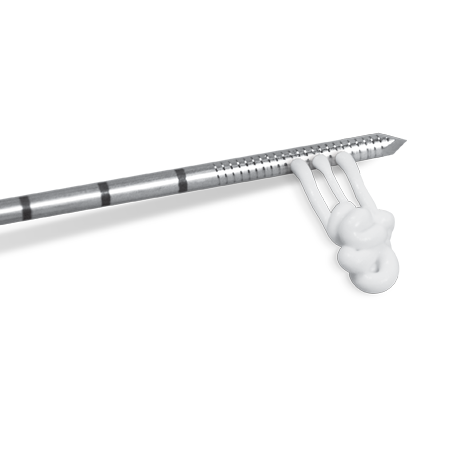

AccuPort Delivery Cannulas

2 components: cannula + stylus – Stylus locks to cannula hub. Trocar-tip for cutting ability. Insert with OR wire driver. 2 sizes. 11 gauge cannula . Side or end-delivery . 15-gauge cannula. End-delivery. Smaller lumen and shorter length is designed to be a  good choice for use in the smaller bones of the midfoot and forefoot

*The grain size of the hydroxyapatite (HA) crystals that form as part of the amorphous and crystalline mixture of calcium phosphate sets are on the nanometer scale. The size of the crystalline structures were measured by X-ray diffraction to be less than 100 nanometers.

Specifications

Benefits

Application

  • Treats chronic, symptomatic, subchondral bone defects which are the primary cause of joint pain, not the intra-articular tissue.5,6

Treatment

  • Proprietary minimally-invasive, joint preserving injection of AccuFill BSM which is replaced with new bone during the healing process.1,2
  • Usually performed along with arthroscopy to aid in visualization, the SCP procedure does not inhibit the treatment of other findings inside the joint when performed along with arthroscopy.
  • Typically, an outpatient procedure enabling patients to generally return home the same day.

Results

  • AccuFill BSM sets hard and remodels into new bone during the healing process.1,2
  • Peer-reviewed data demonstrate sustained pain reduction, improved function and quality of life.3,4
  • SCP Procedure does not preclude future procedures. Should it become necessary, future surgery is still an option.

Education

Literature

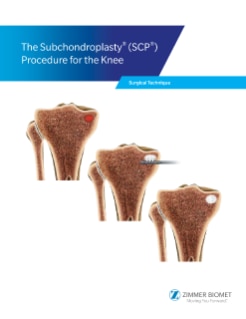

The Subchondroplasty® (SCP®) Procedure Knee Surgical Technique

Technique for the Subchondroplasty Procedure in Knee

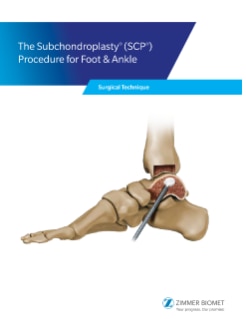

The Subchondroplasty® (SCP®) Procedure Foot & Ankle Surgical Technique

Technique for the Subchondroplasty Procedure in Foot & Ankle

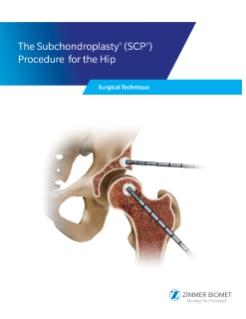

The Subchondroplasty® (SCP®) Procedure Hip Surgical Technique

Technique for the Subchondroplasty Procedure in Hip

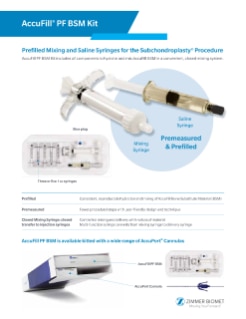

AccuFill® PF BSM Kit Flyer

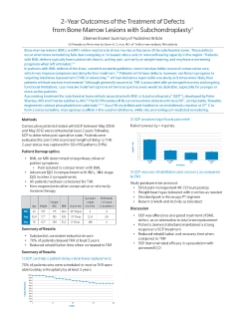

2–Year Outcomes of the Treatment of Defects from Bone Marrow Lesions with Subchondroplasty

Whitepaper

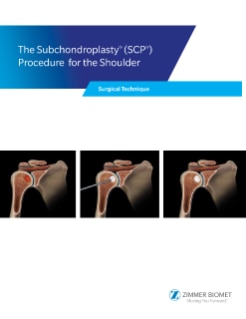

The Subchondroplasty® (SCP®) Procedure Shoulder Surgical Technique

Technique for the Subchondroplasty Procedure in Shoulder

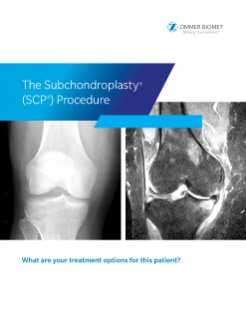

The Subchondroplasty® (SCP®) Procedure Brochure

The Subchondroplasty® (SCP®) Procedure VA Brochure

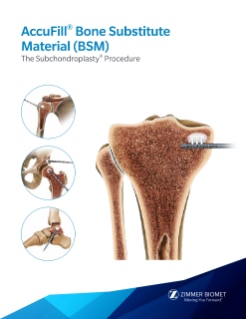

AccuFill Bone Substitute Material (BSM) Brochure

Description, features and benefits of the AccuFill BSM and its us in the Subchondroplasty Procedure.

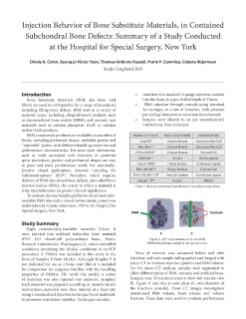

Injection Behavior of Bone Substitute Materials, in Contained Subchondral Bone Defects: Summary of a Study Conducted at the Hospital for Special Surgery, New York

Whitepaper

Videos

Click to play video
Subchondroplasty (SCP) Procedure – AccuFill Bone Substitute Material (BSM) Animation

Watch Animation (4 Min)

Click to play video
Subchondroplasty Procedure Hip: Addressing Femoral Head Defect featuring MD W. K. Vasileff

Watch Surgeon Webcast (4 Min)

Click to play video
Subchondroplasty Procedure (SCP) Knee featuring MD Chris Baker

Watch Surgeon Webcast (10 Min)

Click to play video
Subchondroplasty Procedure Freehand Surgical Technique Animation

Watch Surgeon Webcast

Click to play video
Subchondroplasty (SCP) Procedure Shoulder featuring MD Chris Baker

Watch Surgeon Webcast (7 Min)

Click to play video
AccuFill PF BSM Mixing Technique
