Designed to provide reduction and compression as well as structural support during healing
MAX VPC™ Screw System
A big step forward for small bone fractures.

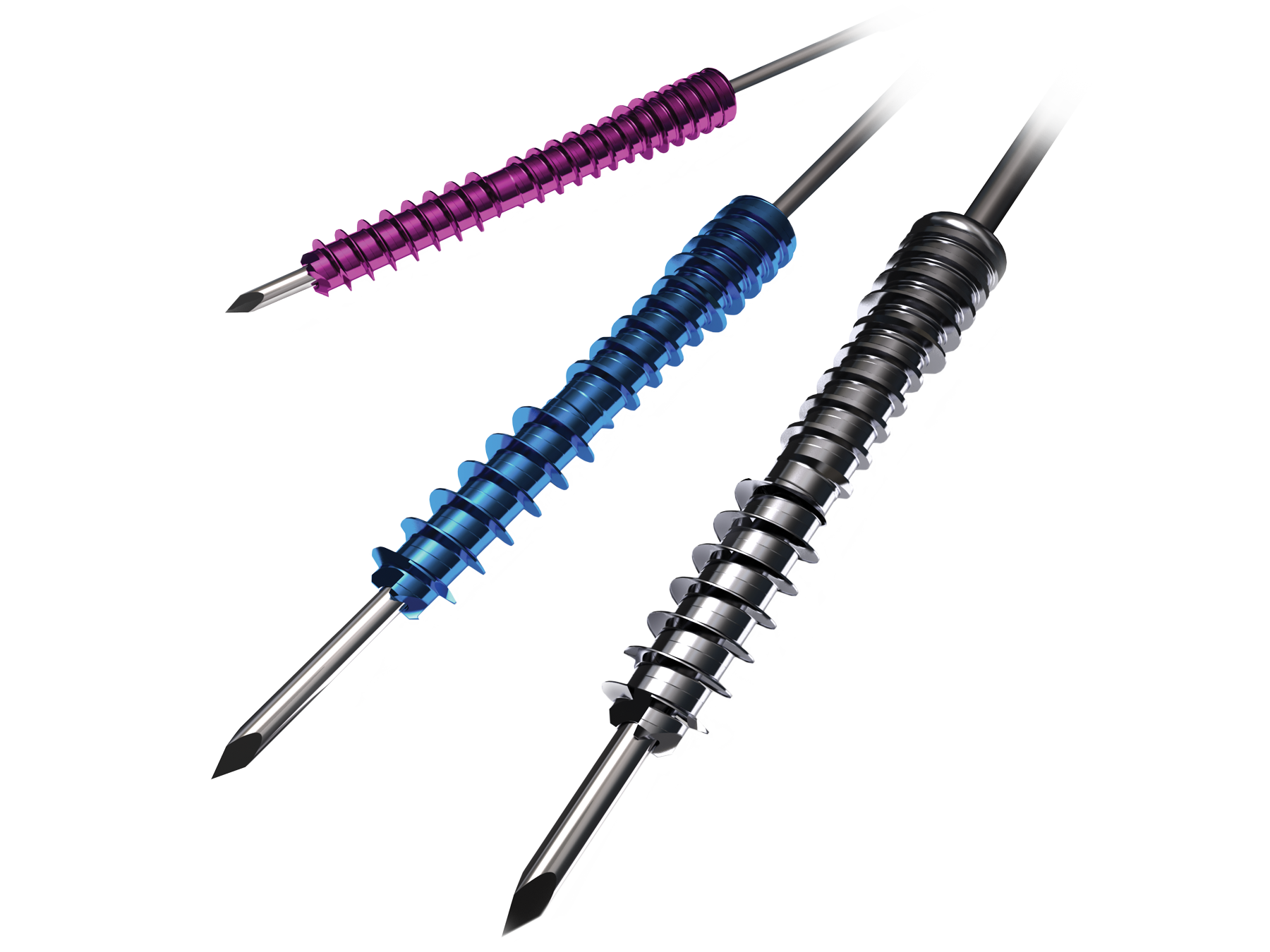

The MAX VPC Screw System comprised of cannulated, headless, fully threaded screws designed to provide the user tactile feedback during insertion, provide compression to the bone fragments and structural support during healing.
- Hand and Wrist
- Plates and Screws
- K-Wire: 0.9 mm
- Long Drill Diameter: 1.8 mm
- Driver Size: 1.5 mm Hex
- Screw Lengths: 8-14 mm = 1mm increment. 16-30mm = 2mm increment
- K-Wire: 1.1 mm
- Long Drill Diameter: 2.4 mm
- Driver Size: 2.0 mm Hex
- Screw Lengths: 14-34 mm = 2mm increment
- K-Wire: 1.4 mm
- Long Drill Diameter: 3.2 mm
- Driver Size: 2.5 mm Hex
- Screw Lengths: 16-40 mm = 2mm increment
- The color-coded system allows for easy identification of specialized instrumentation to the corresponding sized screws.
- Short lengths available (95mm, 105mm, 127mm) make instrumentation user-friendly and facilitate reduction by securely holding bone fragments.
- The system includes 39 implant options for patient-specific sizing.

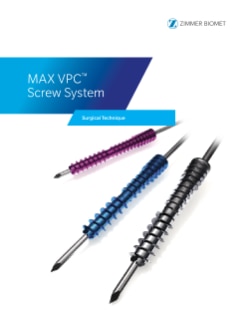

Zimmer Biomet MAX VPC DIP Surgical Technique
Zimmer Biomet MAX VPC Dorsal Surgical Technique
Zimmer Biomet MAX VPC Volar Surgical Technique
* Yield strength for Stainless Steel is 110 Ksi min versus 208 Ksi for 35NLT Alloy CoCr.
